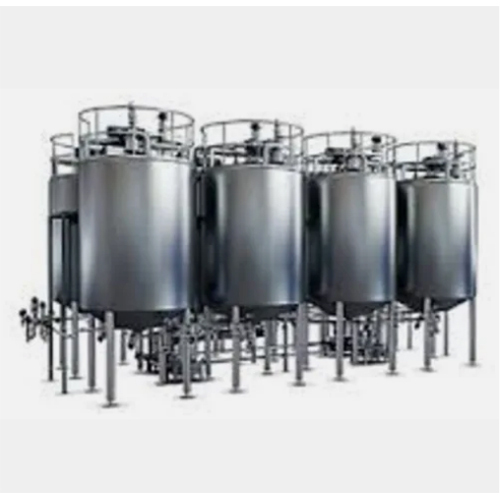

Reception Tank

Name: Reception Tank
Brand: NM TECHNICAL SOLUTION
Price: 200000.0 INR
Availability: InStock

Price 200000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Reception Tank Specification

Temperature
-10C to 120C

Condition
NEW

Dimension (L*W*H)
Customizable as per requirement

Capacity
500 Litres to 20,000 Litres

Material
Stainless Steel

Shape
Cylindrical Vertical

Storage Material
Liquid / Semi-Liquid Products

Grade
SS304 / SS316

Tolerance
1 mm

Thickness
2 mm to 10 mm

Application
Dairy, Food & Beverage, Pharmaceutical, Chemical Processing

Processing
Welded / Fabricated

Agitator Type
Optional (Propeller / Paddle / Anchor)

Internal Finish
180-240 Grit Polish

Compliance
cGMP / ASME standards

Corrosion Resistance
High

Cleaning Facility
CIP / SIP Ready

Insulation
Optional Polyurethane / Mineral Wool

Surface Finish
Mirror / Matt / EP Finish

Mounting
Leg Supported / Skid Mounted

Vessel Opening
Manhole, Inlet, Outlet, Vent provided

Pressure
Atmospheric / Low Pressure

Reception Tank Trade Information

Minimum Order Quantity
1 Number

Delivery Time
7 Days

About Reception Tank

NTMS is one of the leading and specialised Manufacturer, Exporter, Supplier, Fabricator of SS (Stainless Steel), CS (Carbon Steel) Pressure Vessels, Chemical Storage Tanks, ISO Tank, ISO Tank Container from Noida, Uttar Pradesh, India. Majorly focusing on Onshore, Offshore and Overseas Clients. These tanks are widely used in OIL AND GAS, DISTILLERY, PERTROCHEMICAL & many other Industries. These tanks are designed as per ASME SEC VIII DIV I. We are known and approved Stamp U Manufacturers of pressure vessels and storage tanks as per ASME certification.

Premium Surface Finishing Options

Select from mirror, matt, or electropolished (EP) finishes, enabling optimal hygiene and simplified cleaning-key for pharmaceutical or food & beverage use. The internal polish (180-240 grit) reduces product buildup, supporting effective sterilization and product quality.

Flexible Design and Customization

Our reception tanks are available in cylindrical vertical shapes, with customizable dimensions and thickness (2-10 mm) to precisely suit your facility layout and processing needs. Whether you need leg-supported or skid-mounted installation, we tailor each tank for your requirements.

Robust Performance and Compliance

Meeting high standards for corrosion resistance (thanks to SS304/SS316), our tanks are fabricated to meet cGMP/ASME standards, and support atmospheric or low-pressure applications. Each vessel is thoroughly inspected for 1 mm tolerance and welded/fabricated for enduring reliability.

FAQ's of Reception Tank:

Q: How do you select the optimum surface finish for a reception tank?

A: Choosing between mirror, matt, or EP finish depends on your application's hygiene and cleaning needs. Mirror and EP finishes are ideal for processes where sanitation is paramount, like pharmaceuticals or dairy, due to reduced product adherence and ease of cleaning. Matt finish is suitable for applications where visual aesthetics are less critical.

Q: What is the process for customizing the Reception Tank's capacity and dimensions?

A: You can specify the desired capacity (between 500 and 20,000 litres), as well as dimensions (length, width, height) to suit your facility's footprint and operational needs. Our manufacturing process accommodates custom thickness (2-10 mm) and mounting options, ensuring seamless integration.

Q: When should insulation be included in a reception tank?

A: Insulation using polyurethane or mineral wool is recommended when temperature control is essential-for instance, in dairy or chemical storage where maintaining process temperatures prevents spoilage or degradation. Insulation is optional and customized depending on your requirements.

Q: Where are these reception tanks typically installed and used?

A: The reception tanks are installed in processing plants across the dairy, food & beverage, chemical, and pharmaceutical industries. Their versatile design allows placement in production areas where hygienic, reliable liquid or semi-liquid storage is critical.

Q: What cleaning processes are supported by the tank design?

A: Our reception tanks are CIP (Clean-in-Place) and SIP (Sterilize-in-Place) ready, streamlining automated cleaning and sterilization without disassembly. The smooth internal finish (180-240 grit) and integrated vessel openings enhance cleaning efficiency, reducing downtime.

Q: How does the tank ensure compliance and long-term safety?

A: The tanks are manufactured to comply with cGMP and ASME standards, offering high corrosion resistance and precise fabrication (1 mm tolerance). This ensures lasting structural integrity, safe handling of sensitive materials, and regulatory adherence in critical industries.

Q: What benefits do optional agitators provide?

A: Optional propeller, paddle, or anchor agitators enable uniform mixing of stored products, improve process consistency, and are tailored to your material's viscosity. This enhances product quality and operational efficiency in applications requiring agitation.
